Solar Plastic Molding

LightManufacturing Solar Rotational Molding systems make large plastic products like water tanks without burning fossil fuels.  This reduces the product cost and eliminates greenhouse gas emissions.   The factories can be deployed to any sunny area, and do not require any infrastructure (no grid-energy connection).

We currently operate in California and Hawaii, with additional states coming soon.    Contract molding services are available for select clients – contact us for more information.

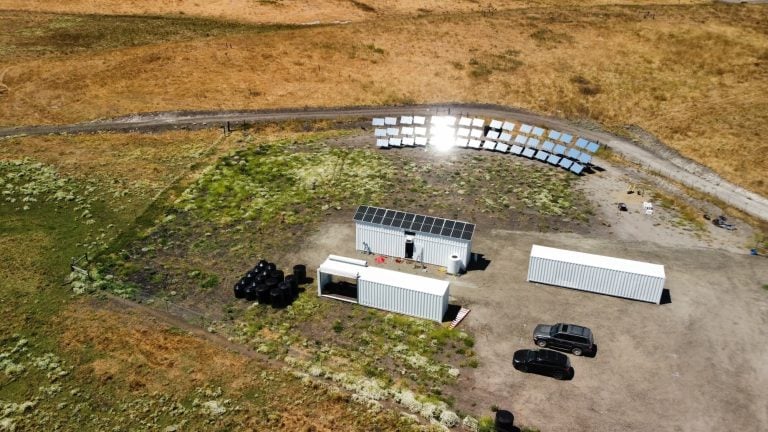

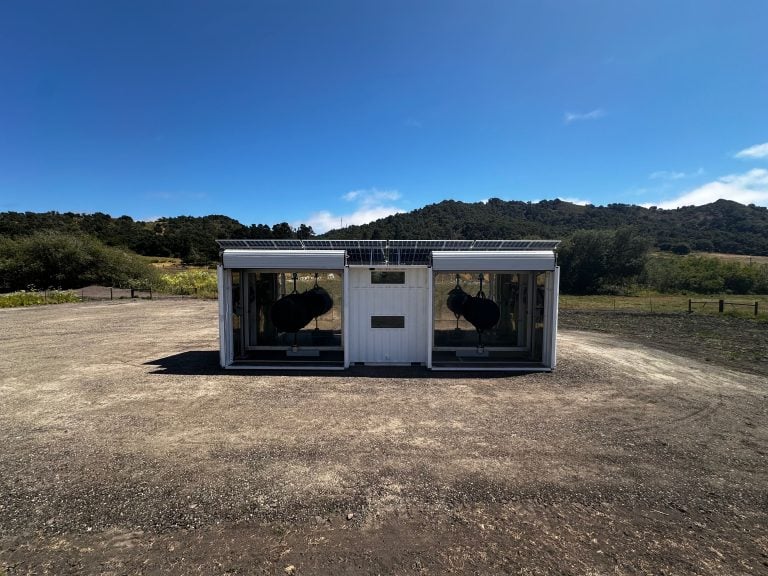

Our solar plastic molding systems use free solar heat from heliostats instead of expensive fossil fuel to make plastic parts. Our Solar Rotational Molding (SRM®) factories are complete systems – just add molds and plastic. Energy for mold rotation is supplied by integrated photovoltaic panels, and heat is supplied by the LM heliostat array. Our molding process emits zero greenhouse gasses, and elminates energy costs.

Because our molding systems can be installed on bare ground (no infrastructure or utilities are required), they can be located close to customer to reduce product shipping cost and associated emissions.

Models

  • Lab System: 10L tank molding capacity)
  • SRM1:  2000L tank molding capacity, one armature)
  • SRM2:  2000L tank molding capacity, two armatures)
  • SRM3:  4000L tank molding capacity, two armatures)
  • SRM4:  8000L tank molding capacity, two armatures)

Frequently Asked Questions

Rotational molding is a globally-used technique for making large plastic objects. Over 3.6 billion pounds of plastic are rotationally molded each year. Unfortunately, the process is energy intensive and uses non-renewable energy sources like natural gas and kerosene.

Rotational molding is an excellent way to make large, life-improving products like water and septic tanks, boats, docks, toys, and much more. Solar Rotational Molding helps this global process cheaper to operate and much more sustainable.

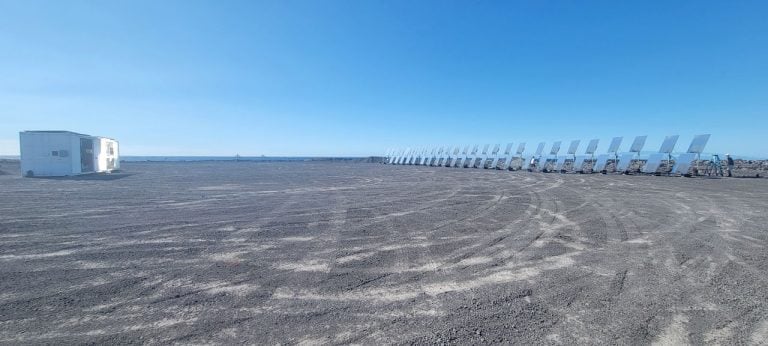

LightManufacturing’s patented SRM (Solar Rotational Molding) process uses sun-tracking mirrors called heliostats, to concentrate solar energy on a rotational mold. We have developed a uniquely capable heliostat, called the H1. Heat from the sun directly warms the mold, melting the plastic. Because the process uses heat directly in the molding process, the system is highly efficient: 75% efficient as compared to typical photovoltaic efficiency of 15% or less. There’s no need to convert light into electricity, nor does energy have to be transported via expensive transmission lines to market.

Zero pollution is generated in SRM, zero greenhouse gasses are emitted, and all fuel costs are eliminated. Our solar factories can be deployed in any sunny area, and infrastructure is required. We can put factories close to customers, reducing product shipping costs.

Yes. Unlike inefficient solar-electric systems, our solar thermal systems capture and use over 75% of incident solar heat. Also, the purchase cost of our heliostats and molding systems is much less than the equipment needed for traditional gas-fired plastic molding. The result? Lower buy-in costs AND lower operating costs. Solar thermal plastic molding out-competes traditional processes without subsidies – a rarity in the clean-tech world. CapEx, OpEx, and Transport costs are all much less than traditional molding.

Solar Rotational Molding Systems install into areas as small as 60′ x 60′ (3600 ft2), with the largest SRM4 systems requiring about 1.5 acres.  However, most of this area is unmodified; it can be left as unimproved land, or even planted with low-height crops.

No digging or ground modification is required to deploy SRM systems.

Compared with the concrete-slab required to support a traditional rotational molding operation, SRM offers a far less impactful solution. Large SRM systems scale as big as needed.

Yes – electricity is used to position the heliostats, and electricity is used to drive the two motors in each molding armature. For small to midsized molds, these motors are 1/2 horsepower and require a total of @ 745 watts peak power. Our Solar Rotational Molding systems include photovoltaic panels, batteries, and charge controllers – you can install an SRM system anywhere. No grid-tie electricity is needed.

Because Solar Rotational Molding uses concentrated solar thermal energy, not solar electricity, it converts a very high percentage of available solar energy to useful heat. SRM achieves 75% typical efficiency, vs solar electric’s 15-20% efficiency. This efficiency, combined with LightManufacturing’s heat management, positioning, and process control software allow mirror arrays as small as 30 m2 to generate sufficient heat to mold objects 1x1xm.

A key difference between SRM and traditional rotational molding is that SRM heats the mold target by radiative heating (efficient, directly heats the metal) vs convective heating (gas burner heats air, which inefficiently heats the metal).

35 heliostat SRM systems routinely mold 2000L water tanks.

Most people think of injection molding when they think of plastic manufacturing – this process is very capital intensive, and produces high volumes of relatively small, thin-walled objects – i.e. plastic cutlery, small toys, flashlight bodies, etc.

Rotational molding is best at making relatively large objects – from something 6″ across to very large objects such as 8′ diameter water tanks or 10′ long boats, with walls up to 1″ thick. These large, heavy objects do not pack efficiently, and shipping them is essentially to ‘ship air’. As a result, Rotational Molding is distributed across all markets – European Rotomolders making parts for Europe and for export, Asian rotomolders making parts for Asia and for export, etc. The distributed nature of rotational molding allows LightManufacturing’s SRM process to be deployed as needed in solar-rich regions.


Rotational molding, and Solar Rotational Molding (SRM) can use a variety of plastics – including virgin (new) material, and recycled material. Plastics made from fossil fuel sources have many environmental issues, but the longevity and reliability of rotationally-molded plastic parts can make them compelling ‘green’ choices over the life of the product – particularly if some recycled content is used. Note that metal, wood or other materials have their own environmental issues as well.

So while plastics aren’t perfect, they have a lot to offer in the context of big long-lasting objects like water tanks, boats, furniture, and more. We think that single-use ‘ephemeral’ plastics are VERY problematic, and we are exploring ways to up-cycle some of these materials into long-lasting rotomolded products. [ A great podcast about the issues of single-use plastics is “Waste Land” by Planet Money. Again we’d point out that we think water tanks, kayaks, septic tanks and similar big durable products are quite different in benefit and impact than (for example) disposable plastic toys given away in a fast-food kids meal. ]

Solar Rotational Molding is an excellent way to close the loop and reuse post-industrial and post-consumer plastic for new products. Especially important is our ability to recycle materials in the field – near landfills and beaches – without requiring plastic waste to be transported to centralized processing facilities. The cost of transportation makes most plastic recycling uneconomical. By removing energy costs from the molding process, SRM makes the molding of ANY plastic more sustainable and affordable, while reducing greenhouse gas and particulate emissions. New plant-based plastics may offer a source for more sustainable high performance, rotationally-molded plastics. SRM applies Concentrated Solar Power / CSP to a globally-deployed industrial ”smokestack process”, and converts it into a sustainable manufacturing process – a cleantech ‘good citizen’.

Any rotational molding resin can be molded using SRM, including polyethylene, polypropylene, nylon, and other polymers. The SRM process uses CSP / Concentrated Solar Power to achieve any desired molding temperature, and often with cycle times less than ordinary rotomolding. Contact us to learn how we can help convert your traditional operation to a low-cost, sustainable manufacturing operation.

Yes, Solar Rotational Molding can ingest / use beach-collected plastic waste with good results, particularly if the product design is tolerant of thick walls to make up for the reduced strength of environmentally-degraded plastics. With the use of a small percentage of ‘bonding’ resin (new plastic that is good at binding different plastics and contaminants together, plastic parts can be molded at 60% beach plastic waste or more. Landfill-sourced plastics can also be used, at even higher percentages if of known type (eg sorted polyethylene).

We are working hard to commercialize this important circular-economy technology.

recycled-loudspeakers-vienna

Yes. We make several models of solar powered shredder. These devices allow you to shred mixed plastic types into small particles that can be ingested into LightManufacturing Solar Rotational Molding systems. This allows for closed-loop / local re-processing of waste materials. Shredded plastic is also dense and can be efficiently transported to larger facilities for re-processing.

LightManufacturing H1 Heliostats are ideal for solar furnace, solar oven, and similar applications. Each H1 heliostat captures up to 2000 watts of solar heat, and directs it to a cooker, water heater, roasting enclosure, or other solar oven/furnace design. Multiple H1 heliostats can target the same enclosure to deliver very large amounts of heat. Depending on your application, LightManufacturing can supply ISO shipping container based sun furnace target enclosures, or you may construct your own target from locally available materials. Similar terms: sun furnace, solar furnace, solar oven, sun oven.

Note: Solar Rotational Molding is covered by our several US and international patents. SRM systems are available for sale, and the technology may be licensed to qualified partners.

LightManufacturing does not currently sell our molding systems – we build and use them for our own production of plastic parts.  We work as a contract molder to supply other companies with cost-competitive, sustainably-molded plastic components of very high quality.   Contact us with your requirements!
